Semi Conductor Devices Charateristics Trainers

Being the leaders in the industry, we offer SEMICONDUCTOR DEVICES CHARACTERISTICS TRAINERS to our prestigious customers. They are used in various laboratories and are appreciated for providing accurate results. It is easy to use and is offered in normal rates and are highly acclaimed in national and international market for its durability and long life.

•    Texla 1145
•    Texla 1146
•    Texla 1147
•    Texla 1149
•    Texla 1151
•    Texla 1153
•    Texla 1154
•    Texla 1156
•    Texla 1169

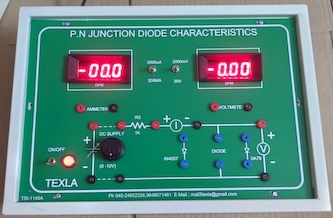

Product Name: Junction Diode Characteristics with Two Meters
Model No: Texla 1145
Description:

To draw the V-l characteristics of PN Junction diodes in forward and reverse bias conditions.

Special Features:

• Variable DC regulated power supply of 0-15V/250A.
• Silicon and Germanium diodes
• Dual range DC voltmeter of 1.5V/15V
• Dual range DC ammeter of 200mA/20mA

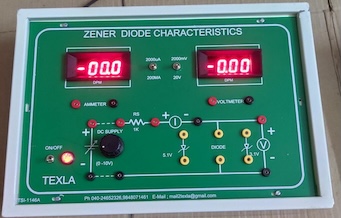

Product Name: Zener Diode Characteristics with Two Meters
Model No: Texla 1146
Description:

To draw the V-l characteristics of PN Junction diodes in forward and reverse bias conditions.

Special Features:

• Variable DC regulated power supply of 0-15V/250A
• Different Values of two Zener Diode
• Dual range DC voltmeter of 1.5V/15V
• Dual range DC ammeter of 200mA/20mA

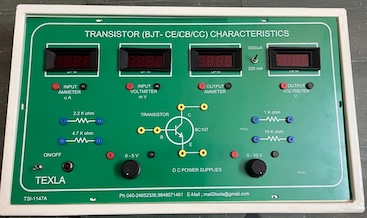

Product Name: BJT Characteristics with Three Meters
Model No: Texla 1147
Description:

To draw input & output Characteristics of NPN & PNP transistors.

Special Features:

• Two Variable DC regulated power supplies of 0-15V/250A
• One NPN & One PNP transistor
• Dual range DC voltmeter of 1.5V/15V
• DC milli ammeter of 0-10mA
• DC micro ammeter of 0-200mA

Product Name: FET Characteristics with Two Meters
Model No: Texla 1149
Description:

To draw the drain and transfer characteristics of Field Effect Transistor.

Special Features:

• Two variables DC regulated power supplies of 0-5V, 0-15V @ 250 mA.
• Two different values of resistors
• Dual range DC voltmeter of 1.5V / 15V
• DC ammeter of 0-10mA

Product Name: Photo Diode & Photo Transistor Characteristics
Model No: Texla 1151
Description:

To observe the relative effects of light intensity and voltage of a photo transistor and photo diode & to draw the V-l Characteristics by changing the intensity of light.

Special Features:

• Two Variable DC regulated power supplies of 0-12V @ 250mA.
• Different values of four resistors on board.
• One 10kOhms potentiometer on board
• 6V/3W miniature bulb on board.
• One photo diode and one photo transistor on board.

Product Name: TRANSISTOR CHARACTERISTICS (CE)
Model No: Texla 1153
Description:

To draw the input and output characteristics of PNP transistor.

Special Features:

• Two variable DC regulated power supplies of 0-12V, 0-15V @ 250mA
• One NPN transistor
• Dual range DC voltmeter of 1.5V/15V
• Dual range DC ammeter of 200mA/20mA

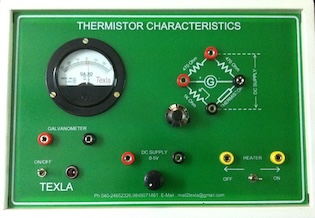

Product Name: THERMISTOR CHARACTERISTICS
Model No: Texla 1154
Description:

To draw the resistance temperature and the voltage - current characteristics of a Thermistor using bridge.

Special Features:

• Variable DC regulated power supply of 0-5V@ 250mA.
• One Galvanometer 30-0-30.
• One thermistor.
• 1K? potentiometer with calibrated dial on board for balancing bridge.

Product Name: ENERGYAP OF A SEMICONDUCTOR
Model No: Texla 1156
Description:

To determine the energy gap of a semiconductor.

Special Features:

• One variable DC regulated power supply of 0-20V@ 250mA.
• One Micro ammeter & One Voltmeter on board.
• One Semiconductor diode.
• One On/ Off switch for heating coil & a potentiometer for Voltage variation.

Product Name: RECTIFIERS AND FILTER CIRCUITS
Model No: Texla 1169
Description:

To determine the characteristics of rectifiers and filters and how the filter capacitor affects the ripple amplitude and output voltage.

Special Features:

• Built in AC power supply of 9-0-9V @ 250 m A.
• Half, Full wave, Bridge rectifiers with L and C filters.
• 10K Potentiometer is provided for load variation.

We also do supply UJT, Photo Diode, Solar Cell , LED , Laser Diode, LDR, SCR, TRIAC,DIAC Characteristics Trainers & also Power Supply Trainers like Zener Diode Regulated, Voltage Doubler, 3 Pin Regulated IC's , Linear , SMPS , Converters , Series & Shunt Voltage Regulator.
